Fed up with your existing Portable Weighbridge having issues, ball bearings falling out, cups wearing, binding issues with frames, and general poor performance with high levels of downtime?
Then look no further than the HD302. This is designed as a Portable Weighbridge as opposed to a large platform scale, allowing free movement of the live weighing deck, without a frame, whilst using appropriate weighbridge load cells, with large ball bearings protected by rubber boot, and an overall low maintenance design. Ideal for Rural Maize and Silage Contractors, Forestry, Quarries, Ports, Roading Projects, Scrap Metal Merchants, Waste sites, e.g. Refuse Transfer Stations and landfills. In fact anywhere where either the portable weighbridge needs to be moved regularly, space is at a premium, concrete foundations are not viable, or where the site is populated on a short term basis.
Our portable weighbridge options include the following features:
- 4m x 2.9m decks combined in configuration of 2, 3, or 4 decks with or without spacers
- Robust construction using 4 x 10t weighbridge load cells in each deck
- Free floating decks (as per traditional weighbridge) which can also accommodate overhang for wider trailers as well as negating binding issues as there is no external frame
- Hot dip galvanised finish

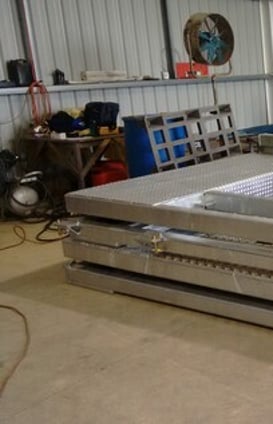

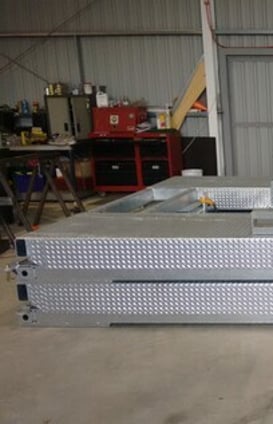

- Easy set up and transportation
- No specific foundation requirements – can be used on compacted level ground or concrete pad
- Approved for trade use by Ministry of Consumer Affairs (Trading Standards)
- Trade certified in Napier and shipped to site, ready to use
- No need to recertify when changing location
- Load cells removable if maintenance is required by removing 4 bolts in deck and 8 bolts that secure the load cell to the frame

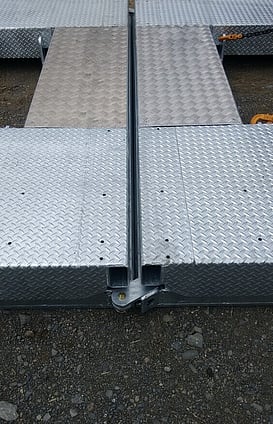

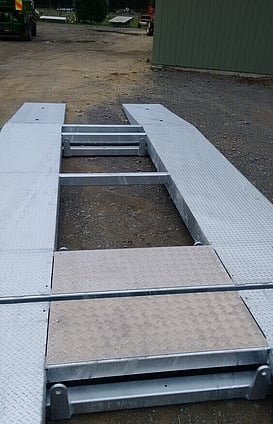

- Option of mid spacer between platforms to suit your setup.
Who might need a Portable Weighbridge
- Rural Contractors harvesting silage and maize, where portability and easy set-up is vital
- Sites short on space, eg. town and city sites including temporary sites where foundations not viable or where site lease is short term
- Waste disposal sites, transfer stations, landfills
- Scrap metal merchants
- Quarries and aggregate operations
- Ports
- Forestry
- Roading projects
- Clients who want to purchase a NZ manufactured top quality portable weighbridge product.
3 Deck
Size:
•3 x 4m long x 2.9m wide decks giving 12m total length.
•Spacers between decks (live or not) can be added to increase length to either
14m or 16m.
Capacity:
•40,000kgs for three decks.
Load Cells:
•4 x 10ton shear beams per deck.
•IP68 Protection rating.
4 Deck
Size:
•4 x 4m long x 2.9m wide decks giving 16m total length.
•Spacers between decks (live or not) can be added to increase length to
18m, 20m or 22m.
Capacity:
•60,000kgs for four decks.
Load Cells:
•4 x 10ton shear beams per deck.
•IP68 Protection rating.
Indicator Options
A variety of trade approved indicator options are available.
These are two basic readers. We can supply basic with just a screen and then option of a printer.
DFWT (Truck) Indicator for weighbridges with input/output function.
Digital weight indicator for weighbridge management. Extremely simple and intuitive, easing the user with the weighing operations. Fitted with database of 99 open input weighs and database of 20 quickly recallable tares. Fitted with attached thermal printer. CE-M approvable (OIML R-76 / EN 45501).
3590EKR “Enterprise” Weight Indicator with Transport Case for Industrial Applications
Multifunction high performance digital weight indicator in Rack version, complete with 4 connectors for linking the platforms, built-in rechargeable battery with charger, and case. Particularly suitable for mobile weighing applications. CE-M approvable (OIML R-76 / EN 45501).

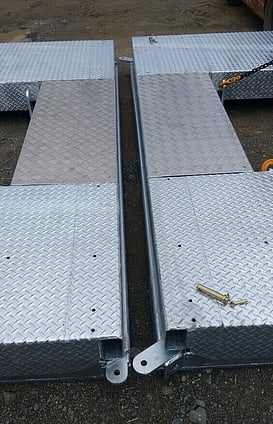

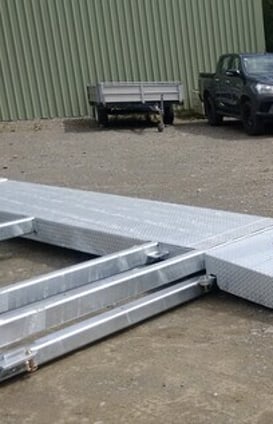

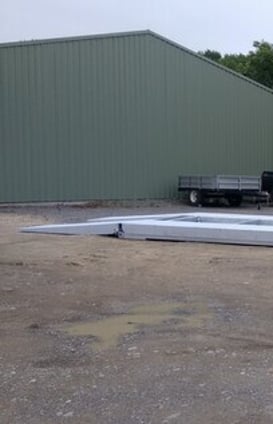

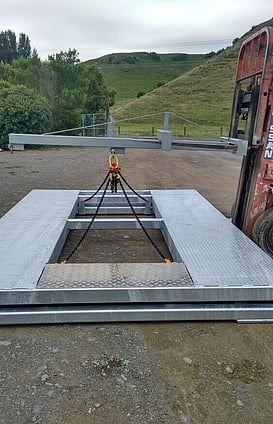

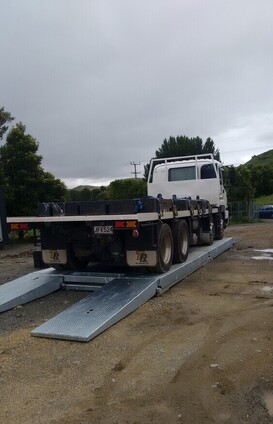

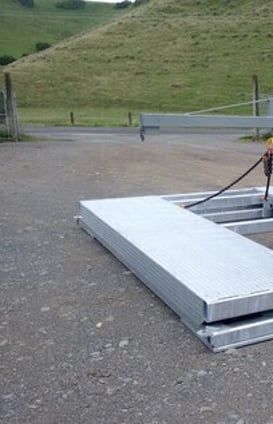

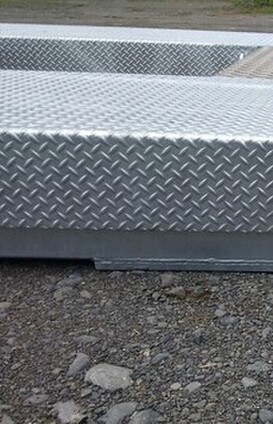

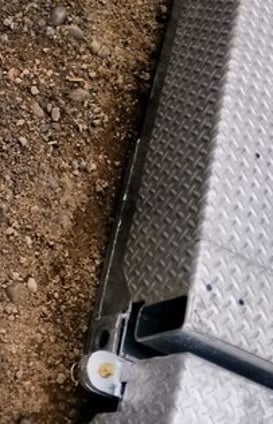

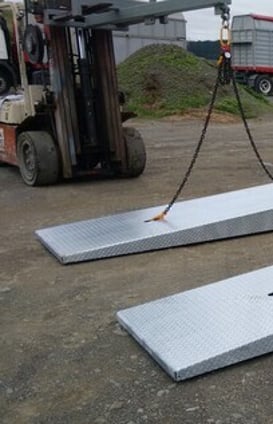

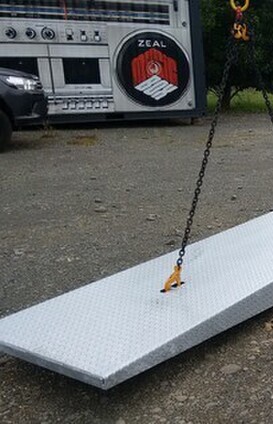

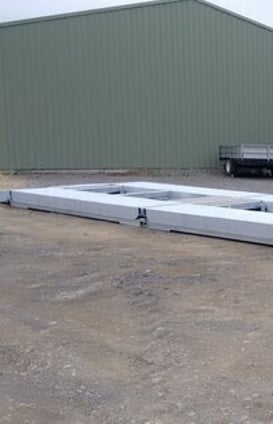

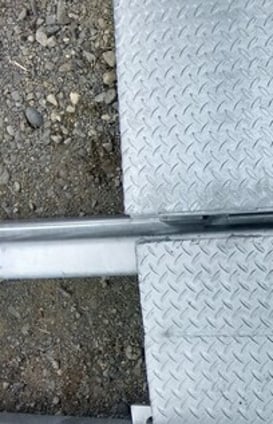

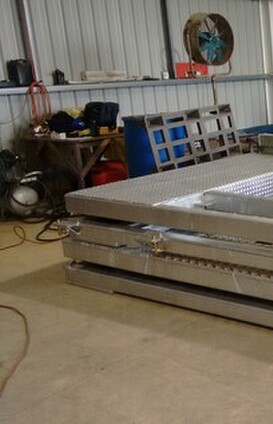

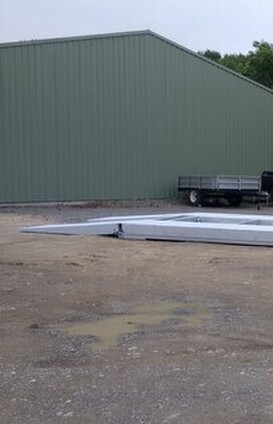

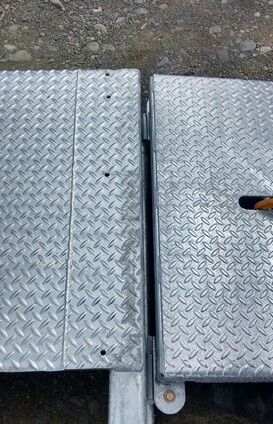

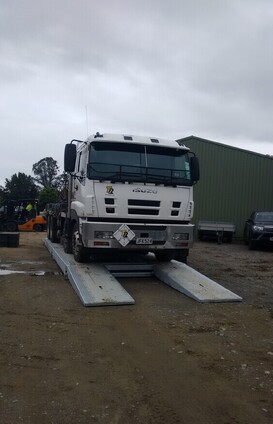

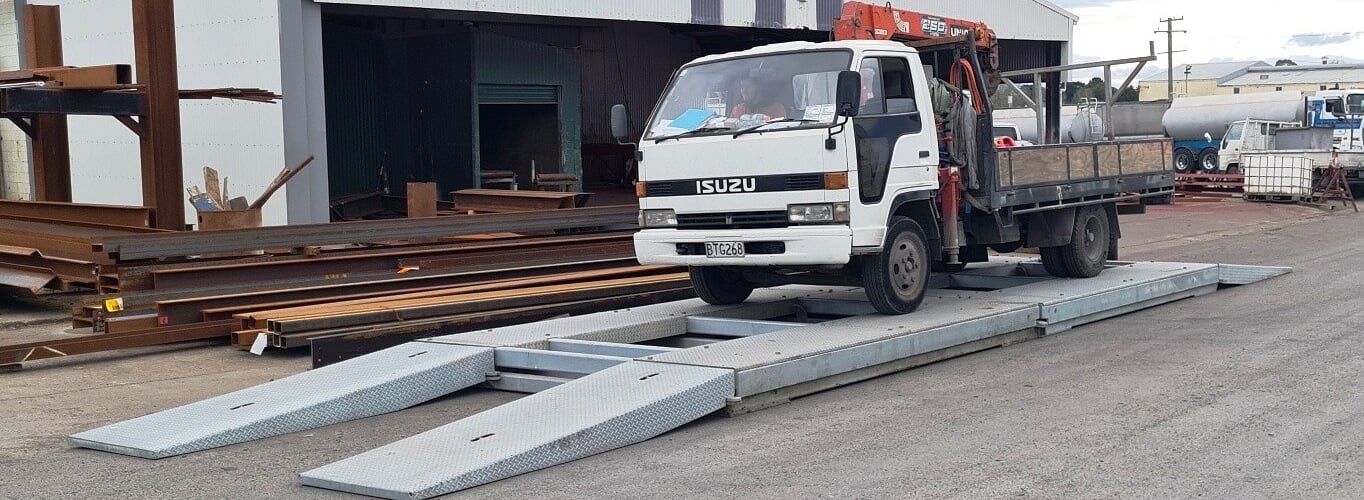

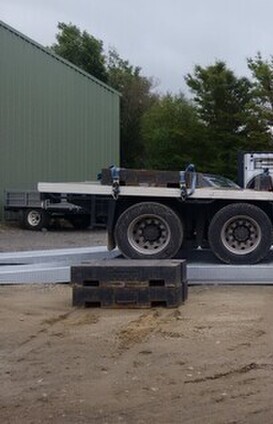

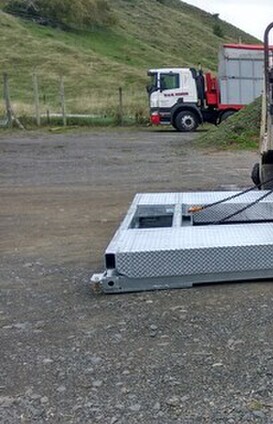

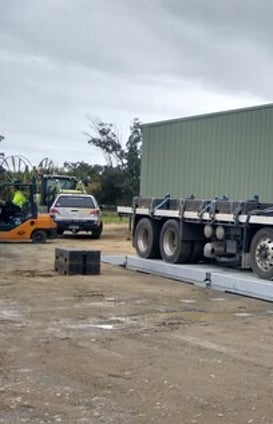

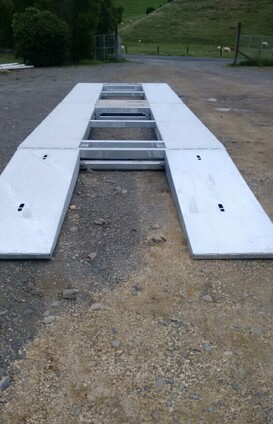

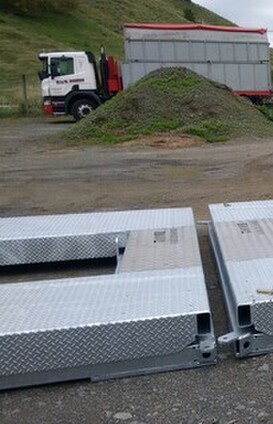

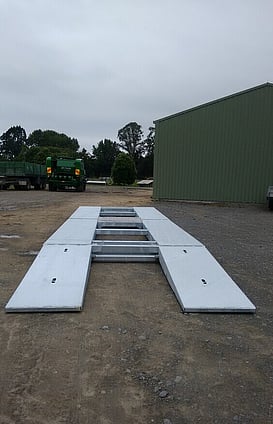

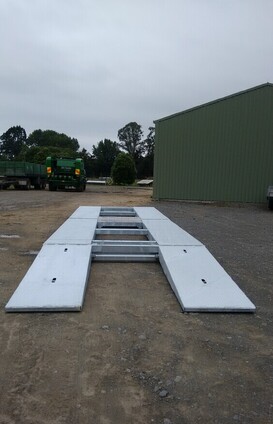

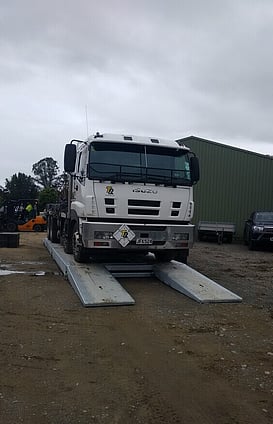

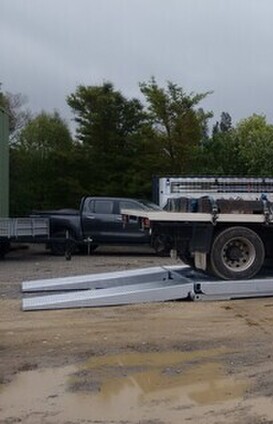

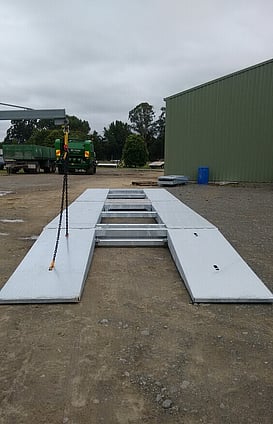

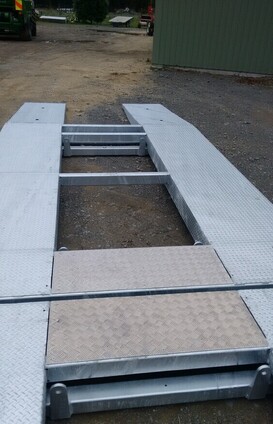

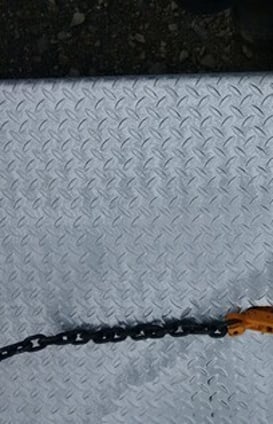

Installing a Portable Weighbridge
This is how the portable weighbridge is set up on location.
